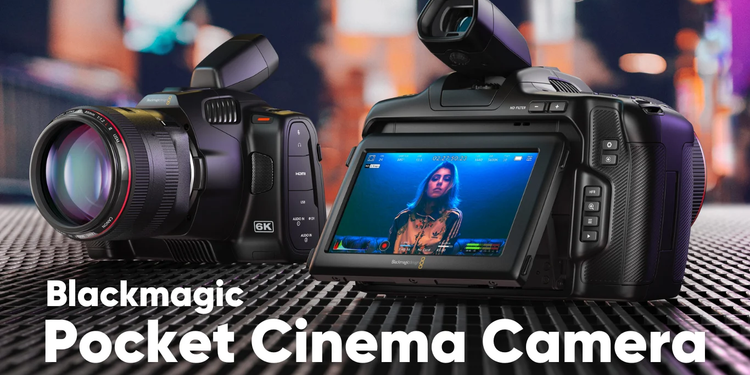

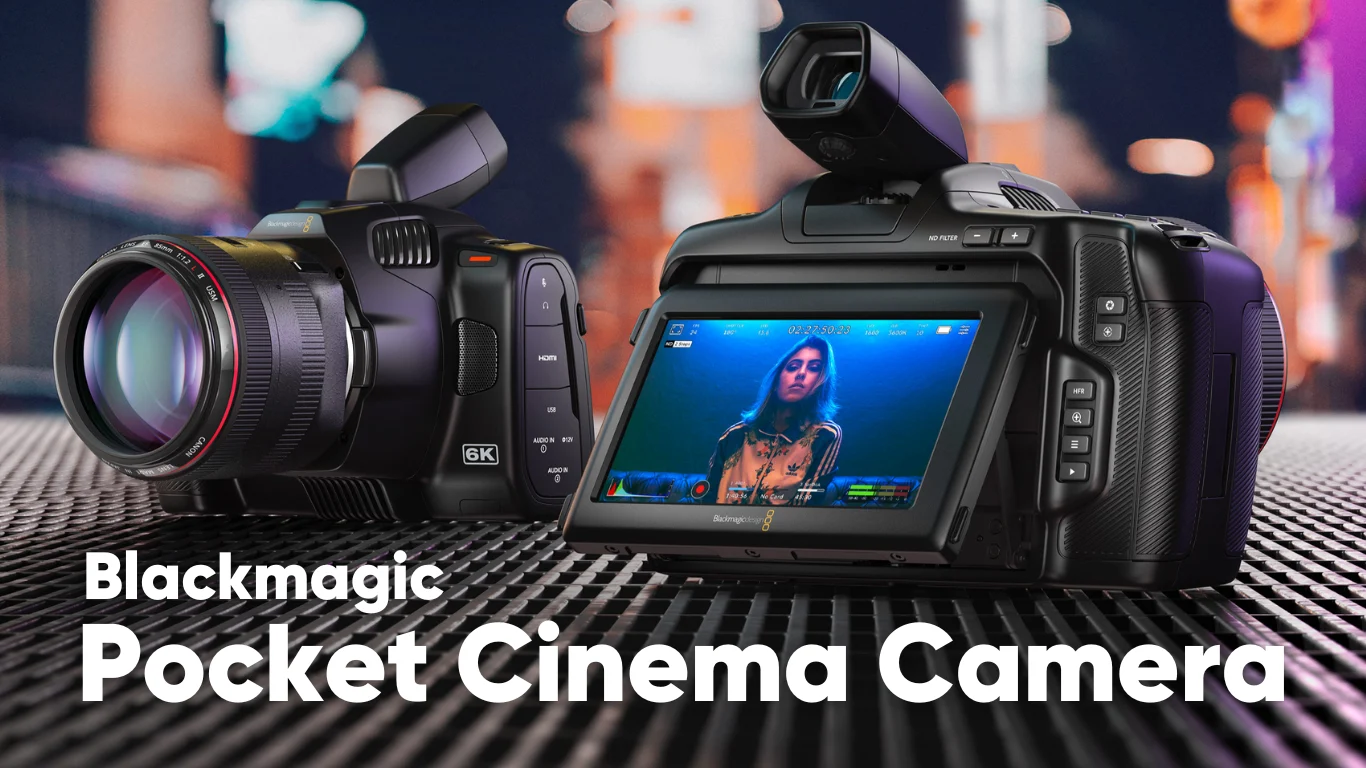

The Blackmagic Pocket Cinema Camera (BMPCC 4K / 6K Pro) and the new full-frame Cinema Camera 6K deliver unmatched cinematic color science and 12-bit BRAW recording at disruptive price points. However, their unique wide body design, reliance on external SSD media, and notoriously short internal battery life mean they cannot be used practically out of the box for professional work.
To transform a bare Blackmagic camera into a production-ready cinema workhorse, you must build a comprehensive rig focused on structural protection, continuous power, and secure media storage.
1. Core Cages: The Structural Foundation
Due to the camera's wide, plastic-composite body, a metal cage is mandatory to prevent flexing when mounting heavy cine lenses and to provide anchor points for external accessories.
- SmallRig Full Cage for BMPCC 4K/6K & 6K Pro: The industry standard. These cages securely lock into the camera using the top and bottom 1/4″-20 threads while providing locating pins to prevent chassis twist. They feature built-in NATO rails and cold shoes without obstructing the cooling vents or the 6K Pro's built-in ND filters.
- Tilta Advanced / Pro Rig Kit: A highly modular, tactical-style cage. Tilta's ecosystem includes proprietary top handles, sliding battery baseplates, and seamless integration with their Nucleus Nano wireless follow focus systems.
- Kondor Blue BMPCC Cage: Known for premium aerospace-grade aluminum, built-in bubble levels, and extensive ARRI-standard 3/8″-16 anti-twist threads for heavy monitor mounting.
2. Media Management: Securing External SSDs
Recording high-bitrate 6K BRAW directly to CFast 2.0 cards is extremely expensive. The most cost-effective professional workflow involves recording via USB-C to external SSDs.
- Dedicated SSD Mounts (Samsung T5/T7 Shield): Spring-loaded or screw-clamp brackets mount directly to the cage's side or top. Securing the drive prevents it from swinging loose and ruining a take.
- USB-C Cable Clamps: This is the most critical accessory. A snagged USB-C cable will instantly halt recording and can permanently tear the camera’s internal motherboard port. Always use a dedicated thumbscrew clamp that physically anchors the USB-C cable connector head flush against the aluminum cage.
- Side Handles with Internal SSD Storage: Brands like Tilta and SmallRig offer side grips with hollow cavities designed to house a Samsung T5/T7, completely hiding the drive and streamlining cable routing.
3. Power Architecture: V-Mount vs. NPF Solutions
The BMPCC 4K/6K (using Canon LP-E6 batteries) and 6K Pro (using Sony NP-F570 batteries) typically only survive 30 to 45 minutes on internal power. Continuous recording requires an external power distribution strategy.
| Power Solution | Rig Placement | Pros & Cons | Best Use Case |
| Mini V-Mount (50Wh – 99Wh) | Mounted on rear 15mm rods or cage-back plate | Pros: Powers camera, monitor, and focus motors for 4+ hours. Acts as a counterweight for heavy lenses. Cons: Adds significant weight and bulk. | Studio setups, tripods, and shoulder rigs. |
| Sony NP-F970 Battery Plate | Mounted on top handle or side cage rails | Pros: Lighter and cheaper than V-Mount; yields 2-3 hours of run time. Cons: Lower voltage limits accessory powering. | Run-and-gun, gimbal work, and lightweight documentary setups. |
| Battery Grips (Blackmagic OEM / Third Party) | Screwed directly to the bottom chassis | Pros: Extends run time seamlessly without cables. Cons: Prevents the use of standard cages and raises the optical center height drastically. | Handheld photography and casual video shooting. |
Power Connection Tip: Always power the Blackmagic camera using a dedicated 2-pin Weipu to D-Tap cable (plugged into the V-Mount) rather than using a dummy battery, as the proprietary Weipu port provides a secure, locking mechanical connection that cannot be accidentally yanked out.
4. Optical Control & 15mm LWS Support
Blackmagic cameras lack continuous autofocus, making manual focus pulling mandatory.
- 15mm LWS Baseplates: Attach beneath the cage to hold standard 15mm carbon fiber or aluminum rods at the correct 85mm optical height.
- Lens Supports: Essential for relieving torque strain off the camera's active EF or L-mount when using long, heavy cine-zooms.
- Matte Boxes & Follow Focus: Use the 15mm rods to mount a wireless focus motor (e.g., Tilta Nucleus Nano II) and a swing-away matte box for 4×5.65″ ND filters to manage exposure in bright daylight.
