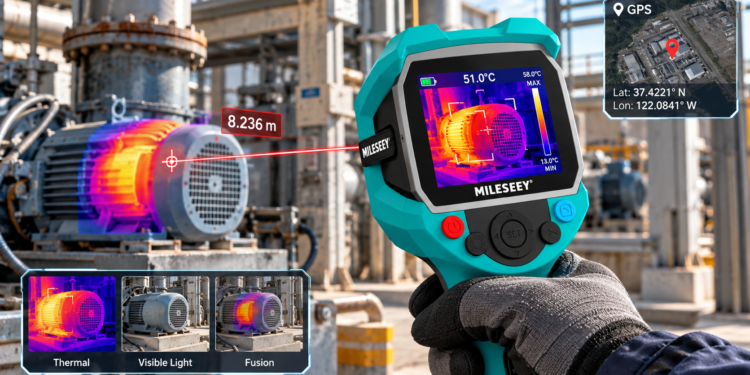

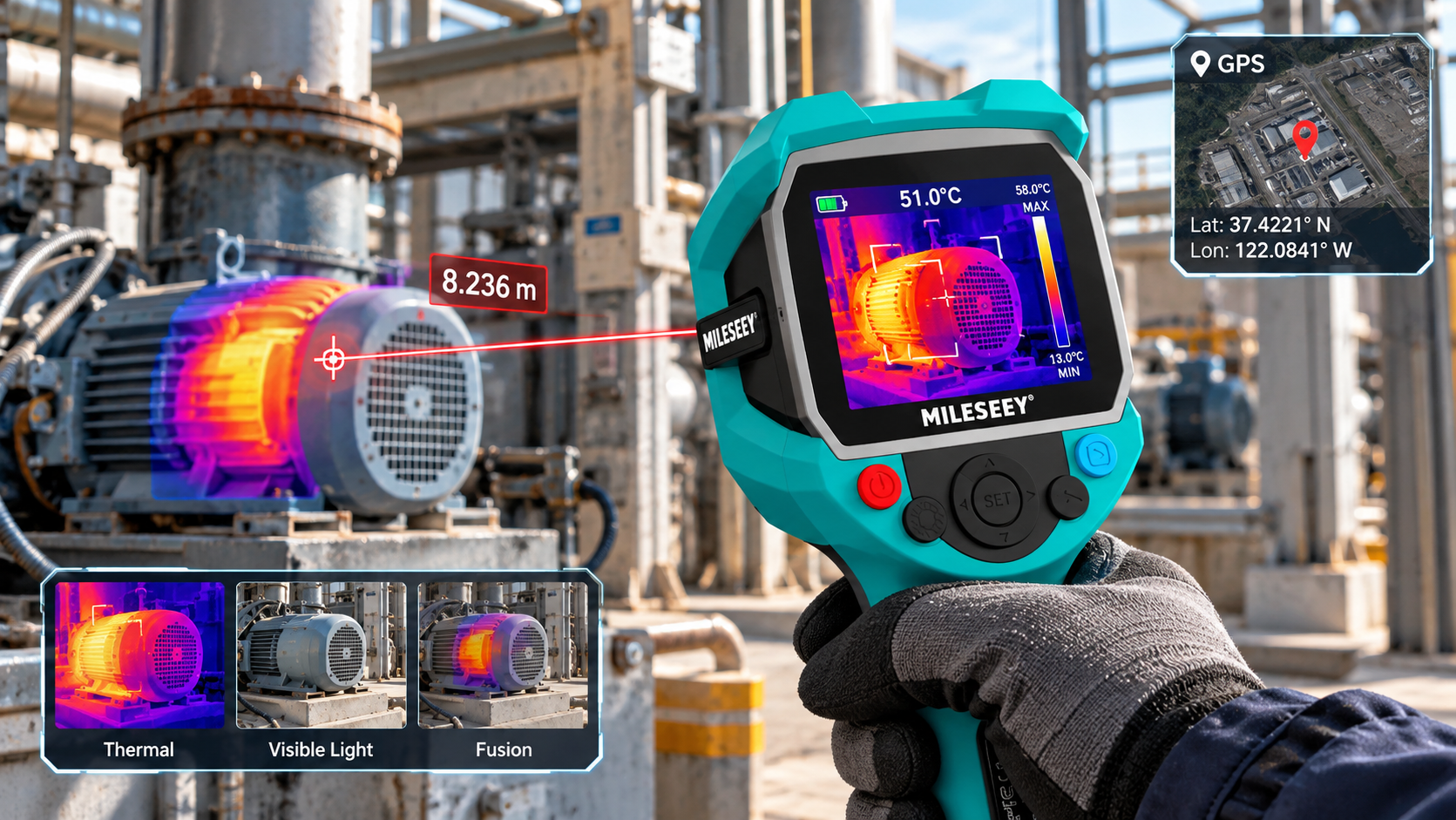

Identifying thermal leaks, overloaded electrical components, and plumbing defects requires more than just standard infrared heat mapping. Modern jobsite inspections demand accurate visual context, exact target distance calculations, and geographical location tagging to build traceable inspection reports. Building on the standalone handheld thermal camera lineup, the Mileseey TR256C review examines Mileseey's versatile diagnostic imager—a tool that integrates a 256×192 thermal sensor, a 2MP visible light camera, a 20-meter laser distance meter, and GPS geotagging into a single device.
Evaluating an advanced multi-functional thermal camera involves analyzing infrared detector resolution, visual overlay options, laser distance rangefinder precision, spatial location recording, and wireless data streaming. Designed to bridge the gap between basic thermal units and costly commercial diagnostic equipment, the Mileseey TR256C provides a comprehensive feature set for HVAC engineers, facility managers, and home inspectors.
Understanding the Mileseey TR256C Architecture
The core innovation highlighted in this Mileseey TR256C review is its multi-sensor hardware design. Featuring a 256×192 infrared pixel array (49,152 active thermal measurement points) alongside a 2-megapixel visible light optical lens, the TR256C combines visual reference details with thermal heat maps.
Displayed on a 3.5-inch IPS display with a 640×480 screen resolution, the TR256C provides clear image clarity across a wide 56° × 42° Field of View (FOV). Operating across a temperature range from -20°C to 550°C (-4°F to 1022°F) with thermal sensitivity rated at ≤50mK (0.05°C), the unit detects subtle temperature differences across complex electrical setups and building envelopes.
Why We Recommend It
In real-world testing across residential energy audits, industrial breaker panels, and plumbing trace inspections, the Mileseey TR256C review device demonstrated exceptional versatility. The built-in 20-meter laser distance meter allows technicians to record accurate distance-to-target measurements directly on screen without needing a separate rangefinder.
Additionally, integrated GPS location logging automatically records latitude and longitude coordinates into each saved photo, streamlining site report creation for large industrial plants or multi-property management. With real-time Wi-Fi projection to computers and tablets, continuous auto hot/cold spot tracking, six selectable color palettes (High-Resolution Rainbow, Hot Red, Lava, Rainbow, Iron Red, and White Heat), and a high-capacity 5,000 mAh lithium battery, the TR256C supports smooth, all-day field diagnostics.
Deep Dive Feature Evaluation: Precision Diagnostic Capabilities
Examining the core specifications evaluated in this Mileseey TR256C review showcases the practical diagnostic capabilities built into this handheld scanner:
256×192 IR Thermal Resolution (49,152 Pixels): Delivers high pixel density to detect thermal anomalies clearly across circuit boards, motor bearings, and wall structures.
Dual-Camera Visible Light Fusion: Blends infrared heat maps with a 2MP optical camera to preserve real-world object outlines and labels.
Integrated 20-Meter Laser Distance Meter: Calculates accurate physical distances to thermal targets up to 20 meters (66 feet) away.
GPS Location Geotagging: Embeds geographic coordinate data into saved images to organize site records and simplify follow-up inspections.
Wi-Fi Projection & Wireless Data Sync: Streams thermal imaging directly to external monitors or laptop computers without physical cables.
Wide -20°C to 550°C Temperature Range: Accurately measures extreme temperatures across refrigeration systems, hot water lines, and electrical connections.
3.5-Inch IPS Display (640×480 Resolution) & 56°×42° FOV: Offers a clear visual workspace and a wide viewing angle to inspect broad surface areas quickly.
Should You Buy It?
Selecting whether the Mileseey TR256C review model aligns with your operational requirements depends on your reporting workflows and technical needs:
Buy the Mileseey TR256C if: You need a complete, multi-functional thermal camera with dual-camera image fusion, an integrated laser distance measure, GPS geotagging, Wi-Fi projection, and broad temperature coverage for professional trade diagnostics.
Skip the Mileseey TR256C if: You only perform quick, casual home inspections and do not require GPS geotagging or laser rangefinding features (where simpler options like the entry-level Mileseey TR120 or standard TR256A offer strong value).
Long-Term Maintenance and Practical Usability Evaluation
In everyday field use, the Mileseey TR256C review device proves intuitive and responsive. The single-handed grip design allows easy access to trigger image captures, switch between visual blending modes, and trigger laser distance measurements. The long battery life supported by the 5,000 mAh internal power cell ensures uninterrupted operation throughout full-day inspections.
Maintenance involves simple routine care: clean both the Germanium infrared lens and the visible optical lens with a soft, lint-free microfiber cloth, keep the protective USB port flap sealed when operating in dusty work environments, and charge the device via standard USB-C power supplies.
Final Verdict on the Mileseey TR256C Thermal Camera
The analysis in this Mileseey TR256C review confirms that the Mileseey TR256C is an outstanding, feature-packed thermal imager. By combining a 256×192 thermal sensor, 2MP visual light camera, 20m laser rangefinder, GPS geotagging, and Wi-Fi streaming into a durable body, it equips technicians with a versatile diagnostic tool.
Ready to simplify your inspection workflow with combined thermal vision, laser accuracy, GPS tracking, and wireless projection?
